Integrate Delinea Secret Server with an Entrust nShield HSM

There are two options for this integration: the CNG cryptography provider, and the PKCS #11 API. Both are covered next.

Configure the Delinea Secret Server using the CNG cryptography provider
Configure the Delinea Secret Server using the PKCS #11 API
Verify integration

Configure the Delinea Secret Server using the CNG cryptography provider

Select the Windows Start > Entrust > CNG configuration wizard.

The nShield CNG Providers Configuration Wizard appears.

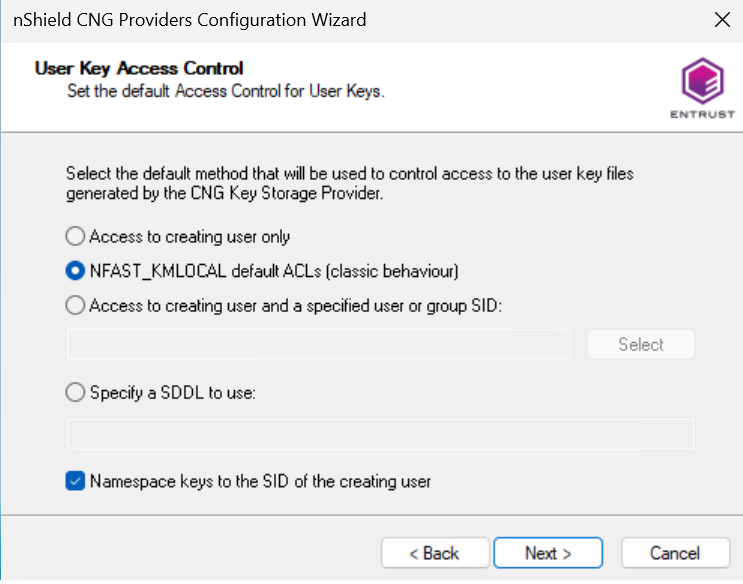

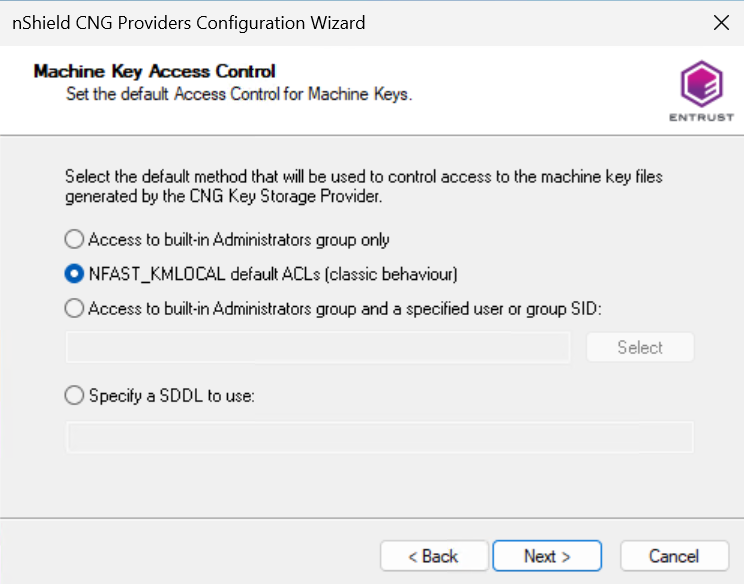

Select Next twice.
Select Use the existing security world if one was created in deploy-entrust-nshield.adoc#install-security-world-hsm.
Select Next twice.
Select the protection method. Either:
- Select Module Protection, then select Next twice and then select Finish.
- Select OCS, select the OCS created above, then select Next twice and then select Finish.
Run certutil -csptest on a command window:
```
certutil -csptest > <filename>
```

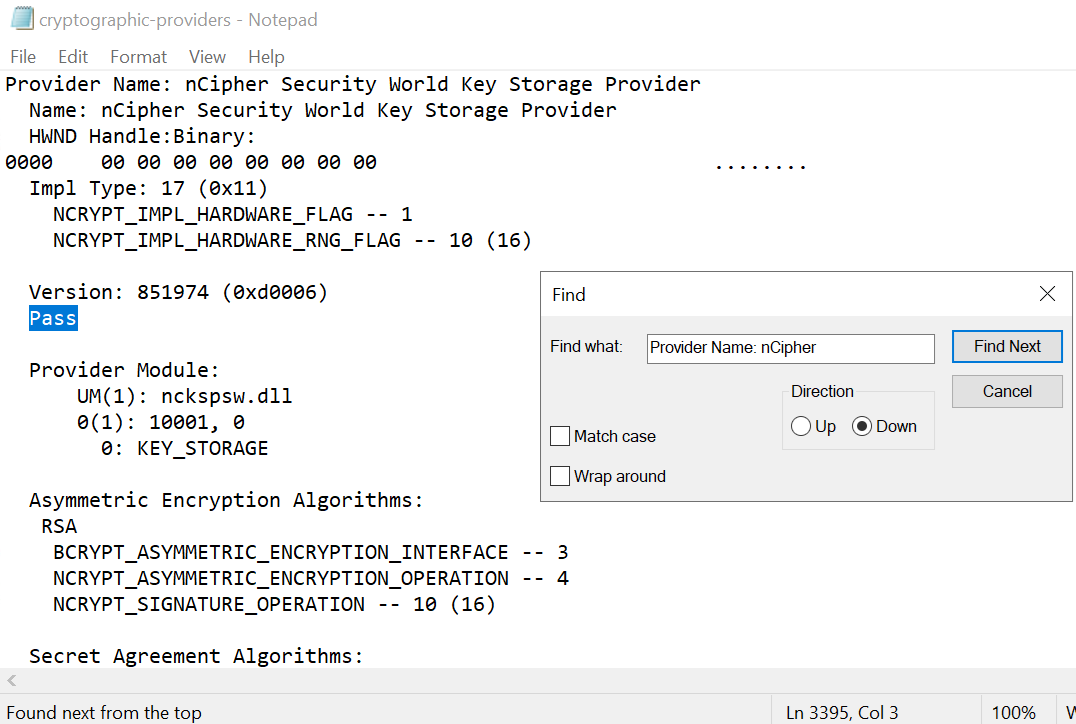

Search for Provider Name: nCipher in the file created above, and make sure that it shows Pass. For example:

Provider Name: nCipher Security World Key Storage Provider
  Name: nCipher Security World Key Storage Provider
  HWND Handle:Binary:
0000	00 00 00 00 00 00 00 00                            ........
  Impl Type: 17 (0x11)
    NCRYPT_IMPL_HARDWARE_FLAG -- 1
    NCRYPT_IMPL_HARDWARE_RNG_FLAG -- 10 (16)

  Version: 786512 (0xc0050)
  Pass
  ...

Log in to Delinea Secret Server via a browser at https://localhost/SecretServer.
From the menu in the left pane, select Administration > Actions > Configuration > HSM.

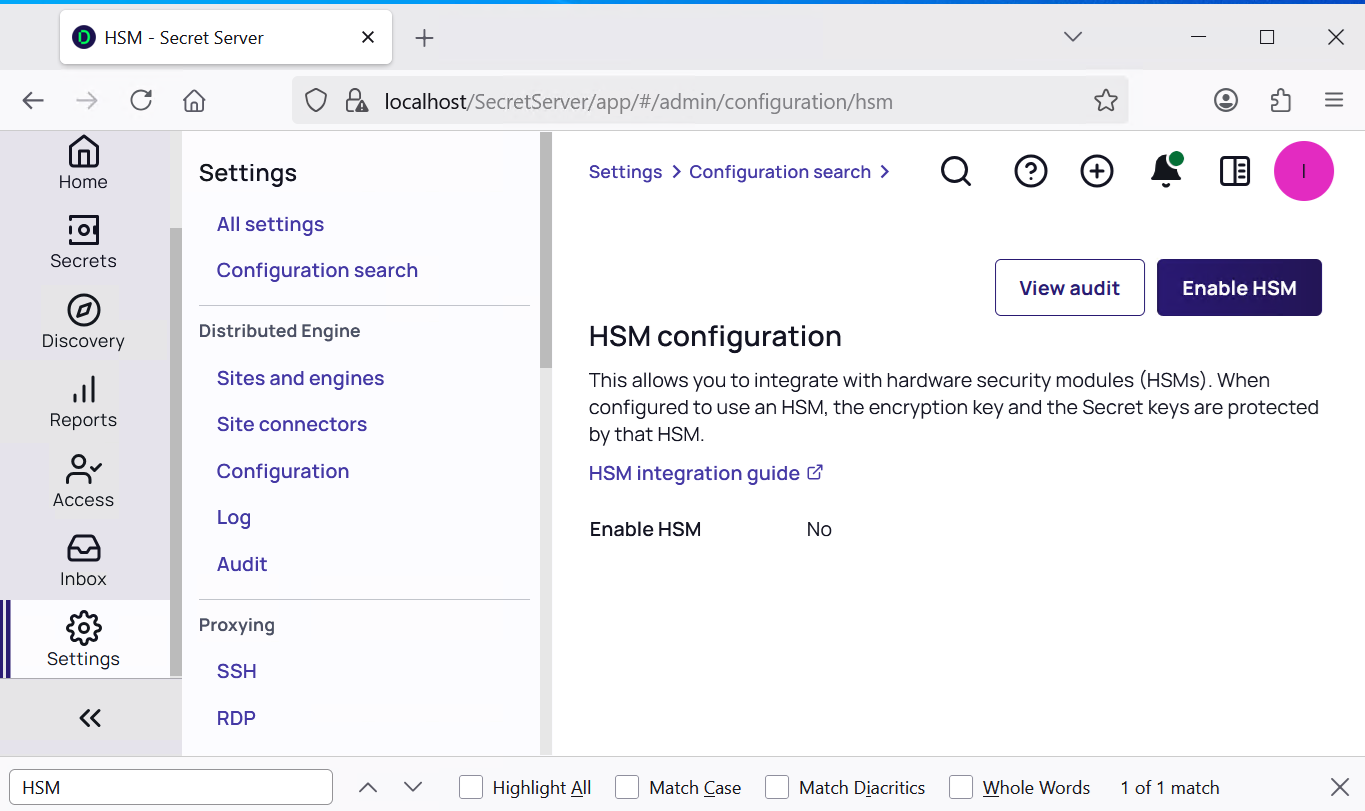

The Configuration page appears, with the HSM tab selected
Select Enable HSM and then select Next.
Under HSM Providers:

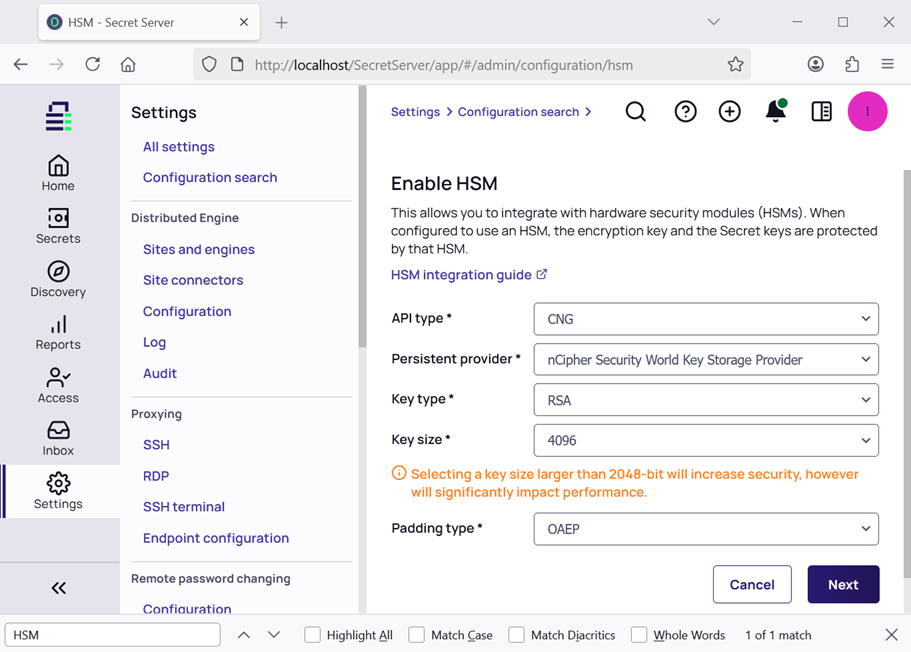

1. For Persistent Provider, select nCipher Security World Key Storage Provider.
2. Select the required Key size. For example:
3. Select Next.

  The HSM provider is tested, and results displayed.

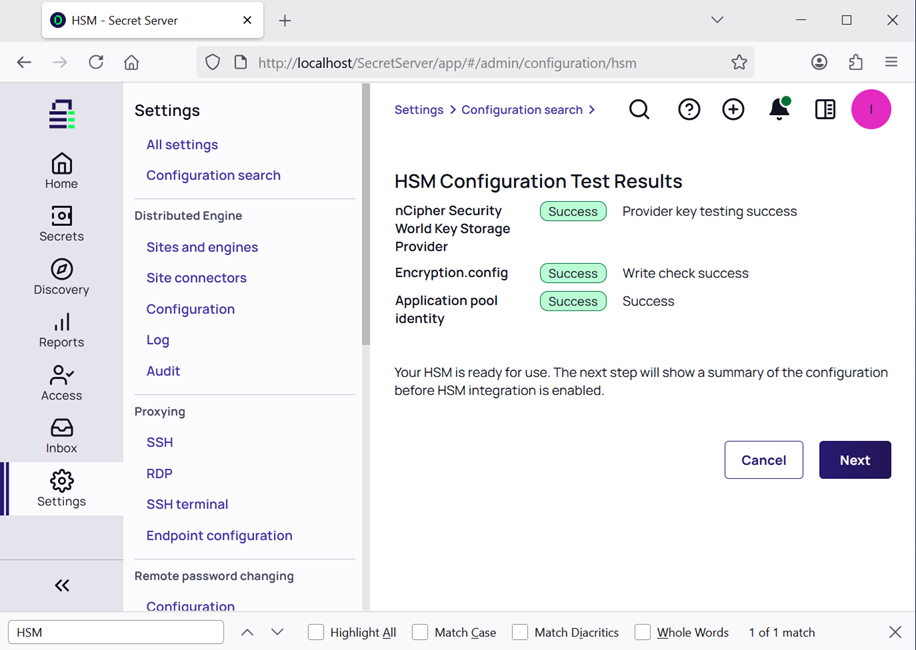

Check the HSM Provider Test Results. For example:
Select Next.

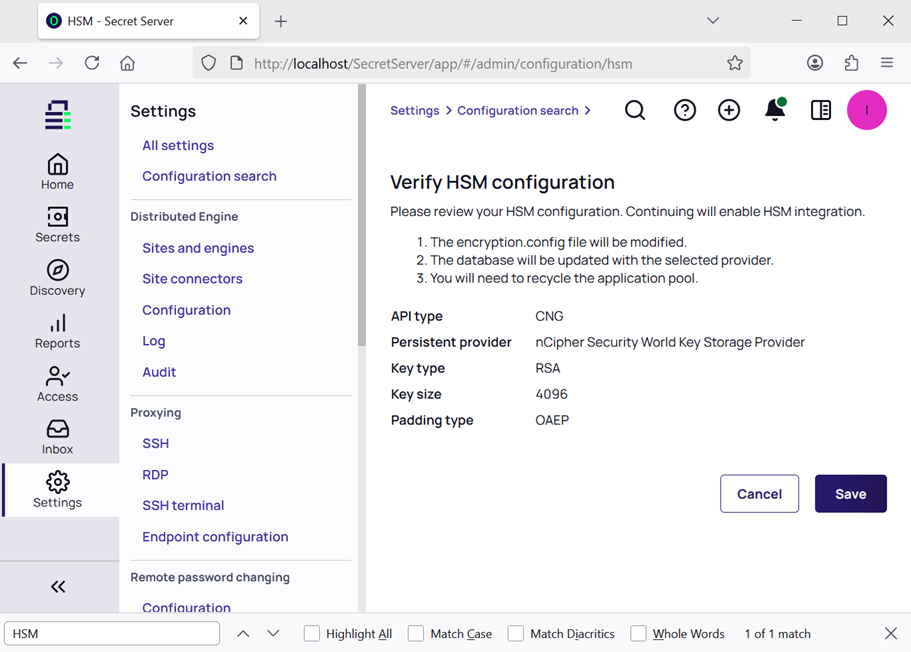

A verification page appears.
Select Save to update the HSM configuration.

A confirmation page appears.
Select Finish.

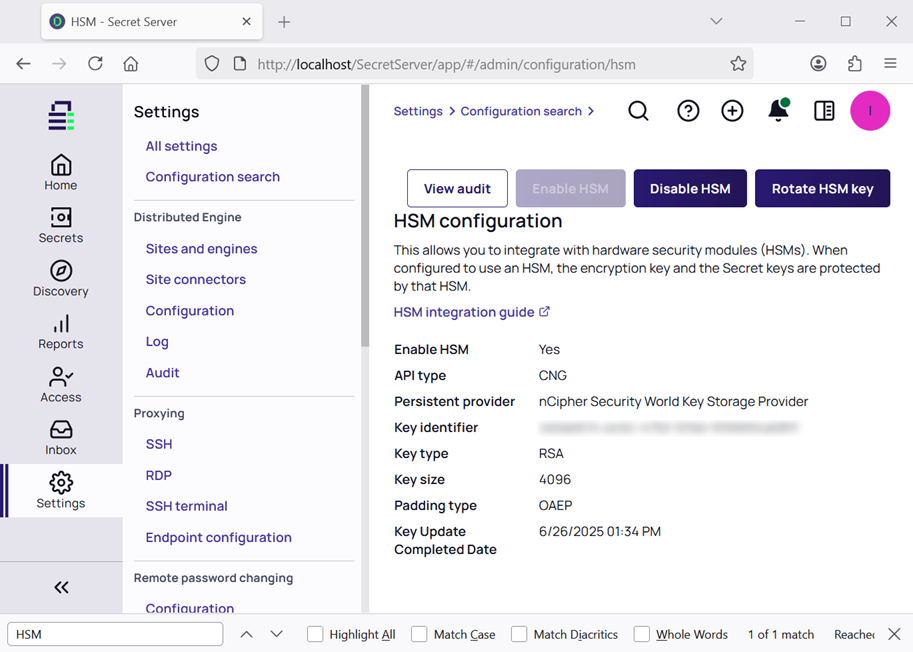

The nShield Connect HSM is now enabled, and the Delinea Secret Server encryption key is stored on it. The nShield Connect HSM configuration details appear on the Delinea Secret Server HSM tab.

Configure the Delinea Secret Server using the PKCS #11 API

Copy the cryptoki library file

located at C:\Program Files\nCipher\nfast\toolkits\pkcs11\cknfast.dll

to C:\inetpub\wwwroot\SecretServer\pkcs11

so that Delinea Secret Server can see it.

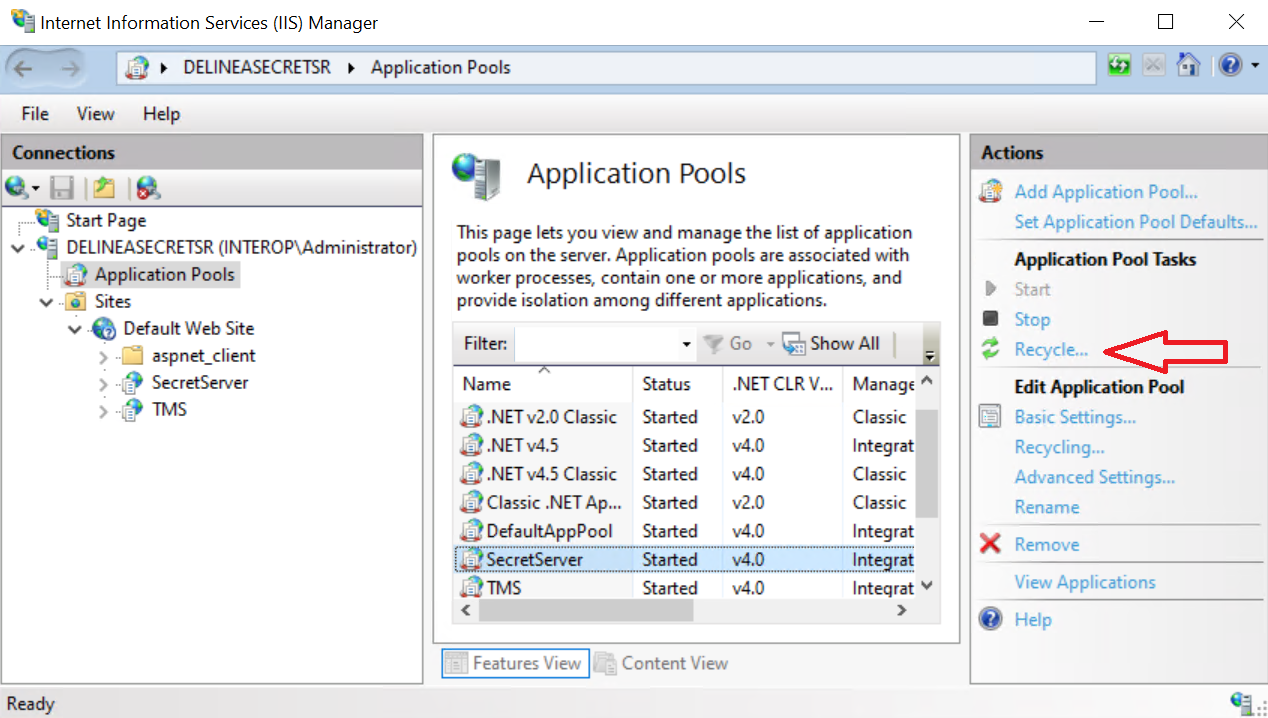

Insert your OCS card into the proper slot.
Select here in the pop up dialogue

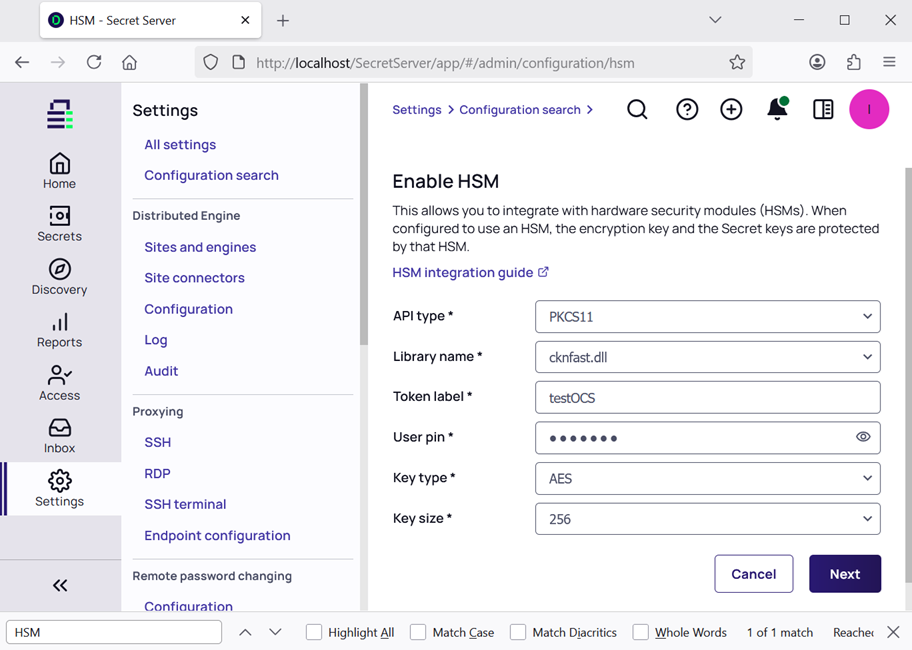

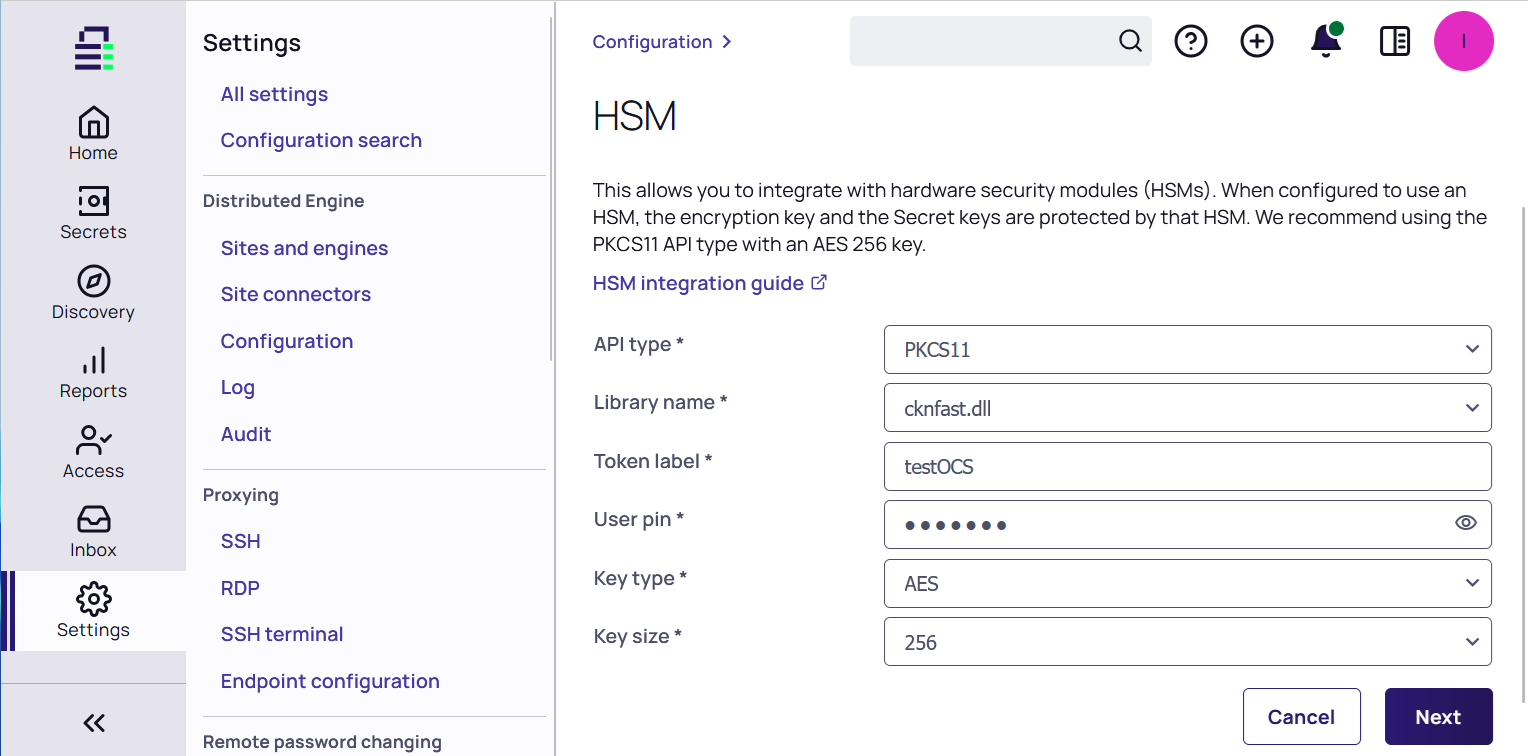

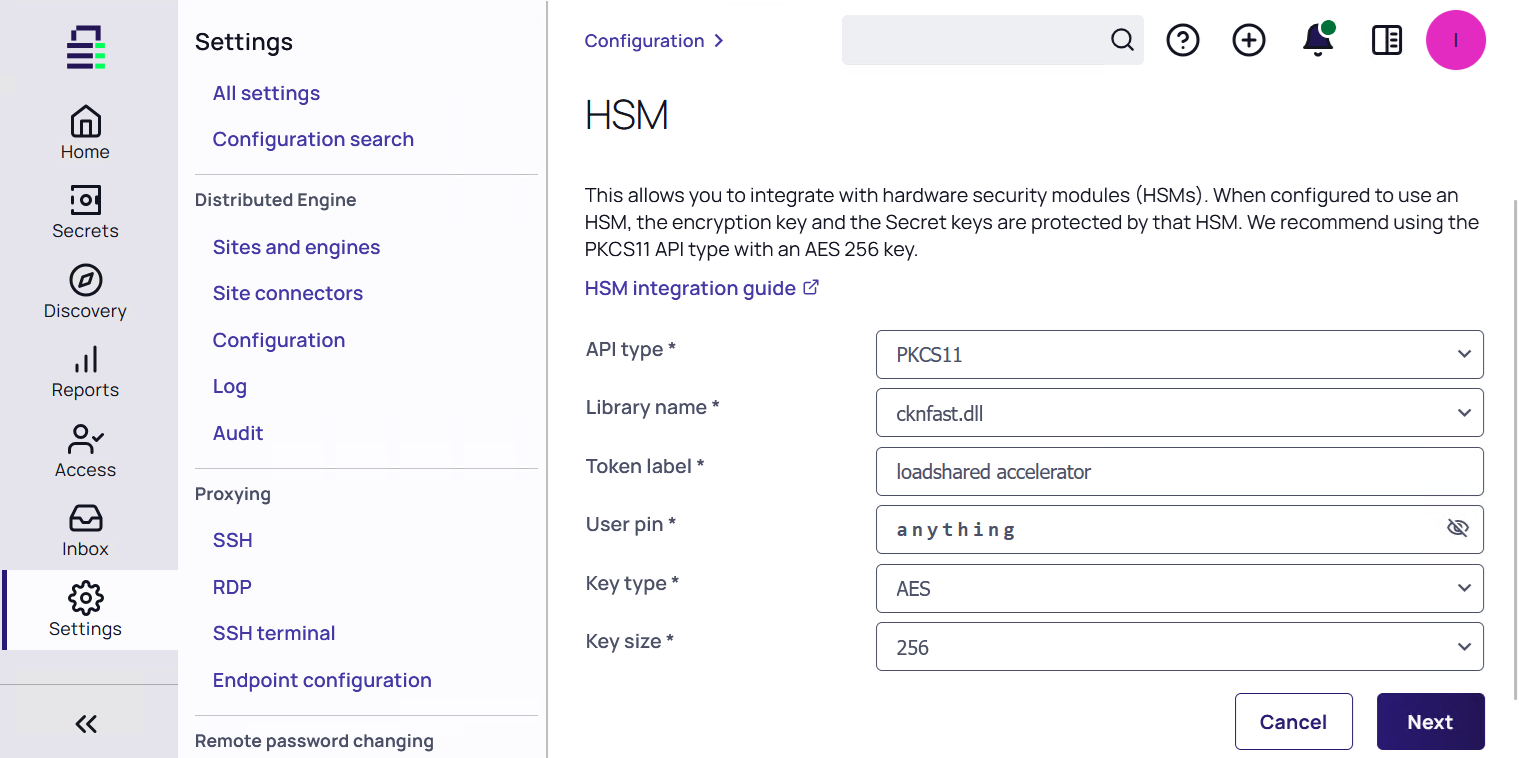

For API Type, select PKCS#11.

For Library Name select cknfast.dll.

For Token Label enter your OCS name.

For User Pin enter your OCS passphrase.

Keep the default Key Type and Key Size.

Select Next

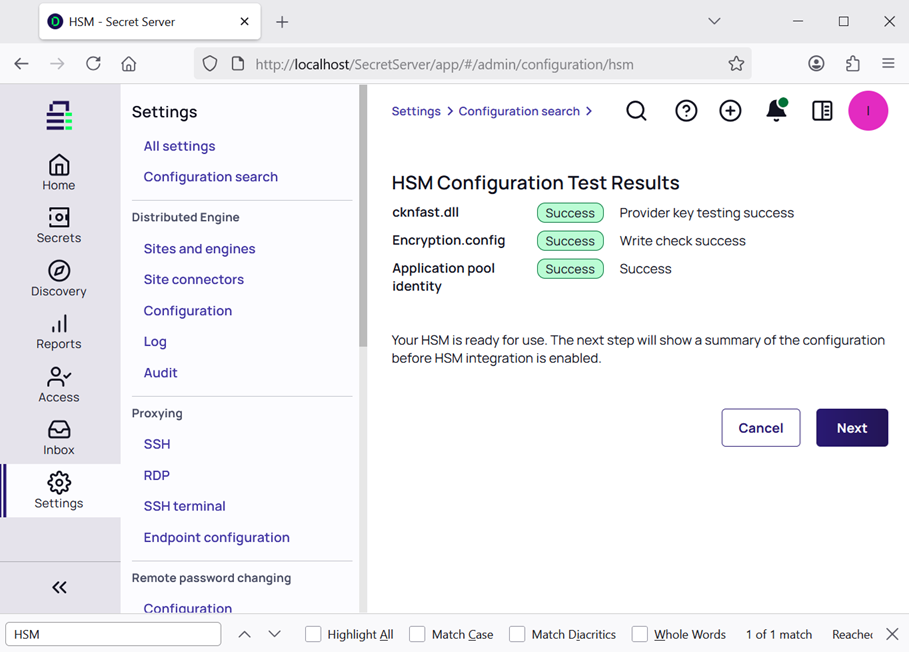

Check the HSM Configuration Test Results, then select Next:
Verify the HSM configuration, then select Next

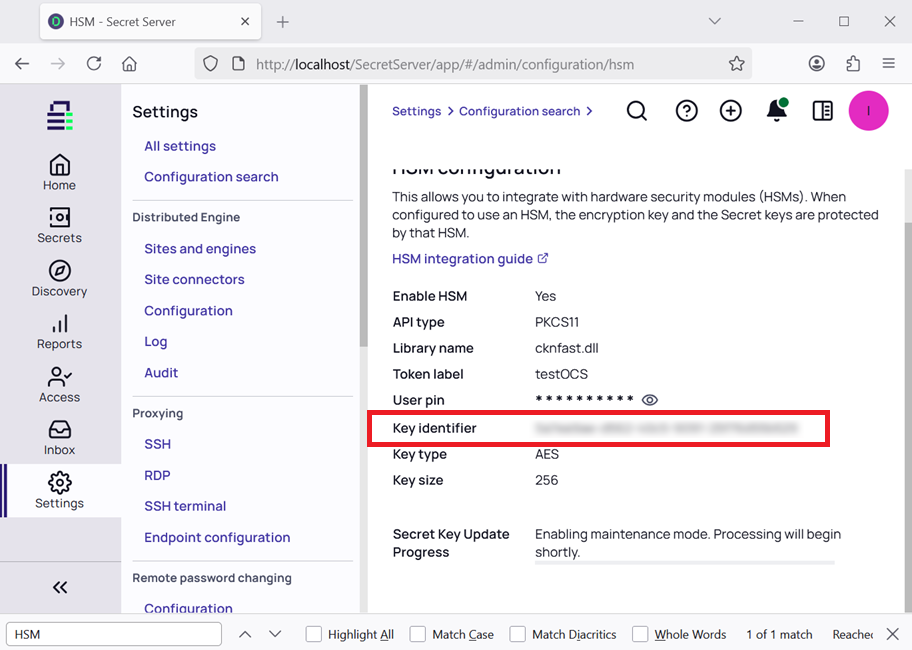

Verify integration

Verify the keys generated by the Delinea Secret Server are stored in the nShield HSM.

Run the nfkmverify utility.

C:\Users\Administrator>nfkmverify

** [Security world] **
    Ciphersuite: DLf3072s256mAEScSP800131Ar1
    128-bit security level
    1 Administrator Card(s)
     (Currently in Module #1 Slot #0: Card #1)
    HKNSO 78b1cbd1814e6f711cc64fe84dae2fe3bd32584a
    Cardset recovery ENABLED
    Passphrase recovery ENABLED
    Common Criteria CMTS 419221-5 disabled
    Strict FIPS 140-2 level 3 (does not improve security) disabled
    SEE application non-volatile storage ENABLED
    real time clock setting ENABLED
    SEE debugging ENABLED
    SEE debugging restricted
    Foreign Token Open authorization ENABLED
    Generating module ESN <ESN-of-HSM> currently #1 (in same incarnation)

Verification successful, confirm details above.  0 keys verified.

This completes the integration of Delinea Secret Server with the nShield Connect HSM. Secrets created in Delinea Secret Server will use encryption keys that are stored in the nShield Connect HSM.
