Procedures

Prerequisites

Before you can use nCOP and run the container images, complete the following steps:

Install Docker. For information, see Get Docker in the Docker online documentation.
Gain access to the Conjur appliance image.
Request the nCOP and Security World software from Entrust.
Set up the HSM. See the Installation Guide for your HSM.
Configure the HSM(s) to use the IP address of your container host machine as a client.
Load an existing Security World or create a new one on the HSM.
Copy the Security World and module files to your container host machine at a directory of your choice.
Create or edit the cknfastrc file in /opt/nfast and add one of the following config settings:

For OCS or Softcard protection:

CKNFAST_LOADSHARING=1
CKNFAST_NO_ACCELERATOR_SLOTS=1

For Module protection:
```
CKNFAST_FAKE_ACCELERATOR_LOGIN=1
```
Optionally, the following can be added to generate PKCS #11 debug logs at the example location:
```
CKNFAST_DEBUG=10
CKNFAST_DEBUGFILE=/opt/ncop/pkcs11.log
```

Create a pkcs11.yml file with the following content:

library: /opt/nfast/toolkits/pkcs11/libcknfast.so
wrapping_key: <wrapping_key name>
pin: <passphrase of ocs/softcard if required>
slot: <slot number for the intended key protection type>

By the default, the slot number for module protection is 0, for softcard protection 1, and for OCS protection 2. This can change depending on your HSM deployment. In our environment, slot 2 was used for softcard protection and slot 1 for OCS protection. The pin passphrase is not required if you are using module protection.

For more information on configuring and managing nShield HSMs, Security Worlds, and Remote File Systems, see the User Guide for your HSM(s).

Here is an example for module protection:

library: /opt/nfast/toolkits/pkcs11/libcknfast.so
wrapping_key: wrappingkey
slot: 0

Here is an example for softcard protection:

library: /opt/nfast/toolkits/pkcs11/libcknfast.so
wrapping_key: wrappingkey
pin: ncipher
slot: 2

Here is an example for OCS protection:

library: /opt/nfast/toolkits/pkcs11/libcknfast.so
wrapping_key: wrappingkey
pin: ncipher
slot: 1

Create and configure the nshield-hwsp container

The nShield hardserver container has to be configured to enable it to communicate with the CyberArk Conjur Master DAP Server in a later step, see Create and configure the Conjur application container and the Master DAP Server.

To deploy an nCOP container image for use with CyberArk Conjur:

Log in to the container host machine server with root privileges and launch a terminal window.
Set up the nCOP working directory:
```
% mkdir -p /opt/ncop
```
Transfer the nCOP tar file to the host machine and extract it into the /opt/ncop directory:
```
% tar xf ncop-1.1.3.tar -C /opt/ncop
```
Chand directory to /opt/ncop:
```
% cd /opt/ncop
```
Mount the Security World ISO file:

Transfer the Security World ISO file to the host machine, then mount it so it can be used by the nCOP script that will create the hardserver image.
```
% mkdir SecWorld-13.6.8

% mount -o loop SecWorld_Lin64-13.6.8.iso SecWorld-13.6.8
```

Set up the hardserver image:

% ./make-nshield-hwsp SecWorld-13.6.8

Detecting nShield software version
Version is 13.6.8
Unpacking hwsp...
Removing redundant files...
Creating files...
.
.
.
 => exporting to image                                                                                         2.4s
 => => exporting layers                                                                                        2.4s
 => => writing image sha256:ecda66fxxxxxxxxxx5c06cfb335xxxxxxxxxxxbe16f27635f58576226a086917                   0.0s
 => => naming to docker.io/library/nshield-hwsp:13.6.8

List the docker images to view the newly created hardserver image:

% docker images

REPOSITORY                      TAG       IMAGE ID       CREATED          SIZE
nshield-hwsp                    13.6.8    ecda66f40322   11 minutes ago   543MB

Configure nshield-hwsp:

Set up the hardserver configuration file and directory:

% mkdir -p /opt/ncop/config1

% ./make-nshield-hwsp-config --output /opt/ncop/config1 config <hsm ip address>

Check that the configuration file information matches your HSM deployment:

% cat /opt/ncop/config1/config

syntax-version=1

[nethsm_imports]
local_module=1
remote_esn=5F08-02E0-D947
remote_ip=1X.1XX.1XX.XX
remote_port=9004
keyhash=732523000c324c8a674236d1ad783a4dae0179fe
privileged=0

Create a new socket so that application containers can use the hardserver:
```
% docker volume create socket1
```

Run the nshield-hwsp container:

% docker run -d -v /opt/ncop/config1:/opt/nfast/kmdata/config:ro -v socket1:/opt/nfast/sockets nshield-hwsp:13.6.8

Check the status of nshield-hwsp using the enquiry command:

% NFAST_SERVER=/var/lib/docker/volumes/socket1/_data/nserver /opt/nfast/bin/enquiry

Create and configure the Conjur application container and the Master DAP Server

The assumption is that you are inside the /opt/ncop directory and that the Security World ISO file still mounted. Transfer the conjur-appliance tar file to the host machine.

Load the `conjur-appliance into the local Docker registry:

The following command can be used to load the conjur-appliance .tar file into the local Docker repository:
```
% docker load -i <PATH-TO-TAR-FILE>/conjur-appliance-13.5.0.tar.gz
```

Extend the conjur-appliance image with the nfast utilities:

% ./extend-nshield-application --from registry.tld/conjur-appliance:13.5.0 --pkcs11 SecWorld-13.6.8

Detecting nShield software version
Version is 13.6.8
NOTICE: --pkcs11 included by default with 12.60 ISO. Flag ignored
Unpacking /opt/nfast/SecWorld-13.6.8/linux/amd64/hwsp.tar.gz ...
Unpacking /opt/nfast/SecWorld-13.6.8/linux/amd64/ctls.tar.gz ...
Adding files...
Building image...
[+] Building 18.2s (8/8) FINISHED                                                                           docker:default
 => [internal] load build definition from Dockerfile                                                        0.0s
 => => transferring dockerfile: 257B                                                                        0.0s
 => [internal] load metadata for registry.tld/conjur-appliance:13.5.0                                       0.0s
 => [internal] load .dockerignore                                                                           0.0s
 => => transferring context: 2B                                                                             0.0s
 => [internal] load build context                                                                           2.5s
 => => transferring context: 264.45MB                                                                       2.3s
 => [1/3] FROM registry.tld/conjur-appliance:13.5.0                                                         0.0s
 => [2/3] COPY opt /opt                                                                                     11.8s
 => [3/3] RUN mkdir -p /opt/nfast/kmdata /opt/nfast/sockets && mkdir -m 1755 /opt/nfast/kmdata/tmp          0.2s
 => exporting to image                                                                                      3.6s
 => => exporting layers                                                                                     3.5s
 => => writing image sha256:cbf9fe5049afe72b3134d3c200baed0272020cc76cdd9b9af71f9a9e4c75ce28                0.0s

List the docker images

% docker images

REPOSITORY                      TAG       IMAGE ID       CREATED          SIZE
<none>                          <none>    cbf9fe5049af   45 seconds ago   1.99GB
nshield-hwsp                    13.6.8    ecda66f40322   14 minutes ago   543MB
registry.tld/conjur-appliance   13.5.0    ff712871eb0a   3 months ago     1.41GB

See the IMAGE ID for the new image. It will be labeled as none.

Tag the generated application image for convenience:

% docker tag <IMAGE ID> conjur-appliance-wnfast:13.6.8

List the images again to validate tagging.

% docker images

REPOSITORY                      TAG       IMAGE ID       CREATED          SIZE
conjur-appliance-wnfast         13.6.8    cbf9fe5049af   2 minutes ago    1.99GB
nshield-hwsp                    13.6.8    ecda66f40322   16 minutes ago   543MB
registry.tld/conjur-appliance   13.5.0    ff712871eb0a   3 months ago     1.41GB

Run the conjur-appliance container with the nfast container:

% docker run --name dap-wnfast -d \
  --restart=unless-stopped \
  --security-opt seccomp=/path/to/conjur-seccomp.json \
  -p "443:443" -p "5432:5432" -p "1999:1999" \
  -v /opt/nfast/kmdata:/opt/nfast/kmdata:rw \
  -v socket1:/opt/nfast/sockets \
  conjur-appliance-wnfast:13.6.8

Check the running containers

% docker ps -a

CONTAINER ID IMAGE                          COMMAND                CREATED            STATUS            PORTS                     NAMES
036009bab3fd conjur-appliance-wnfast:13.6.8 "/usr/local/bin/entr…" About a minute ago Up About a minute 0.0.0.0:443->443/tcp, ... dap-wnfast
4bafaddefabb nshield-hwsp:13.6.8            "/opt/nfast/sbin/nsh…" 12 minutes ago     Up 12 minutes                               confident_vaughan

Perform the initial configuration of Conjur. The username is admin. For password requirements, see Configure the Conjur cluster in the CyberArk online documentation.

% docker exec dap-wnfast evoke configure master \
  --accept-eula --hostname dap-wnfast.example.com \
  --admin-password Mypassw0rD1! org1

.
.
.
You have accepted the CyberArk End User License Agreement.
Use `evoke eula show` in the future to display the EULA.
Configuration successful. Conjur Leader up and running.

Copy the cknfastrc and pkcs11.yml configuration files into the running container:

% docker cp /opt/nfast/cknfastrc dap-wnfast:/opt/nfast/cknfastrc

% docker cp pkcs11.yml dap-wnfast:/opt/conjur/etc/pkcs11.yml

Generate a new Key Encryption Key (KEK) for Conjur to be stored on the HSM:

% docker exec dap-wnfast evoke pkcs11 generate

...
2025-04-17 15:26:32 [2230]: pkcs11: 00000000 D    slot_destroy_hashmaps
2025-04-17 15:26:32 [2230]: pkcs11: 00000000 D    slot_destroy_hashmaps done
2025-04-17 15:26:32 [2230]: pkcs11: 00000000 <    rv 0x00000000
I, [2025-04-17T15:26:32.070847 #2230]  INFO -- : Using nCipher PKCS#11 13.6.8-209-a5bd9.
I, [2025-04-17T15:26:32.071106 #2230]  INFO -- : Using slot from config file
I, [2025-04-17T15:26:32.071177 #2230]  INFO -- : Using 5F08-02E0-D947 Rt1.
I, [2025-04-17T15:26:32.071837 #2230]  INFO -- : Generating a new wrapping key with ID "wrappingkey"...
I, [2025-04-17T15:26:32.094593 #2230]  INFO -- : All done.

Start the conjur-appliance container, which will act as the Master DAP Server, in Interactive mode:
```
% docker exec -i -t dap-wnfast /bin/bash
```

Check for the generated key. Make sure it was created with the intended key protection type, defined by the pkcs11.yml file.

root@036009bab3fd:/# /opt/nfast/bin/nfkminfo -l

Keys with module protection:
 key_pkcs11_uaaexxxxxxxxxx60dbaxxxxxxxxxxx04bdde969a659 `Conjur master key wrapping key'

The KEK is now ready for use.

Web Interface

Log on to web interface: https://1X.1XX.1XX.XXX/
1. User: admin
2. Password: Mypassw0rD1!

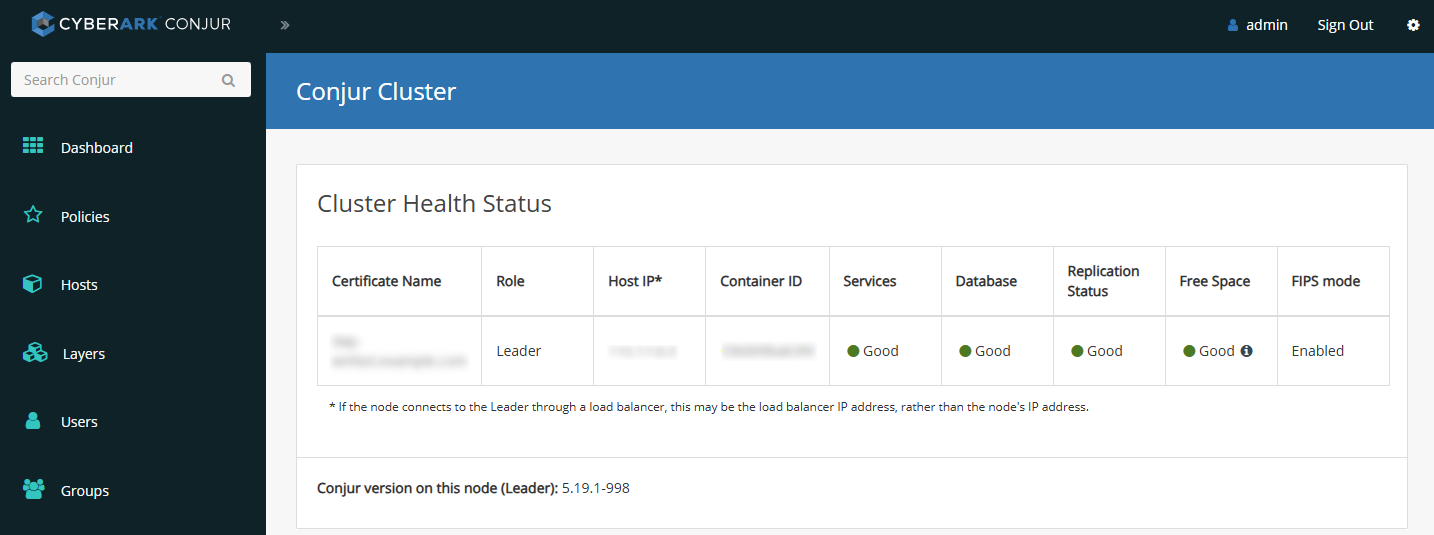

Select the Settings symbol in the top right.
Select Conjur Cluster.
The master node should now be displayed.

Example commands used with the KEK

Here are some examples of commands that can be used inside the docker container. For more examples, see Server Key Encryption Methods in the CyberArk online documentation.

Generate a random master key. Keep this file secure.

root@036009bab3fd:/# mkdir -p /secrets
root@036009bab3fd:/# openssl rand 32 > /secrets/master.key

Encrypt the server keys with the 32-byte master key

root@036009bab3fd:/# evoke keys encrypt /secrets/master.key

Encrypted 4 key files and adjusted 0 symlinks
NOTE: To allow services access to keys, the keys must be unlocked. For more information, run 'evoke keys unlock --help'.

Unlock the server keys and restart the Conjur services

root@036009bab3fd:/# evoke keys unlock /secrets/master.key

Stopping service 'conjur'...
Stopping service 'nginx'...
Stopping service 'pg/main'...
Stopping service 'pg/audit'...
Stopping service 'seed'...
Stopping service 'syslog-ng'...
Starting service 'conjur'...
Starting service 'nginx'...
Starting service 'pg/main'...
Starting service 'pg/audit'...
Starting service 'seed'...
Starting service 'syslog-ng'...
Keys are unlocked. Services and scripts can now access encrypted data.

Wrap the master key

root@036009bab3fd:/#  evoke pkcs11 wrap /secrets/master.key

Using nCipher PKCS#11 13.6.8-209-a5bd9.
Using slot from config file
Using 5F08-02E0-D947 Rt1.
Using wrapping key "wrappingkey".
Wrapping the master key...
Wrapped key stored in /opt/conjur/etc/pkcs11-keys.

Lock the keys

root@036009bab3fd:/# evoke keys lock

Stopping service 'conjur'...
Stopping service 'nginx'...
Stopping service 'pg/main'...
Stopping service 'pg/audit'...
Stopping service 'seed'...
Keys are Locked. Services and scripts can no longer access encrypted data.

Unlock the keys

root@036009bab3fd:/#  evoke keys unlock

No master key found in the session keyring
Using PKCS#11 master key configuration...
Using nCipher PKCS#11 13.6.8-209-a5bd9.
Using slot from config file
Using 5F08-02E0-D947 Rt1.
Using wrapping key "wrappingkey"...
Service 'conjur' is not running. Skipping stop.
Service 'nginx' is not running. Skipping stop.
Service 'pg/main' is not running. Skipping stop.
Service 'pg/audit' is not running. Skipping stop.
Service 'seed' is not running. Skipping stop.
Stopping service 'syslog-ng'...
Starting service 'conjur'...
Starting service 'nginx'...
Starting service 'pg/main'...
Starting service 'pg/audit'...
Starting service 'seed'...
Starting service 'syslog-ng'...
Keys are unlocked. Services and scripts can now access encrypted data.
